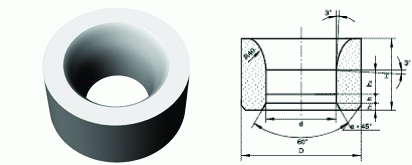

Drawing Dies - Type20
| Type | Dimensions | ||||||
| D | H | d | h | h1 | h2 | αo | |
| 20- | 16.00 | 14.00 | 2.00~3.00 | 1.00~1.50 | 1.00 | 2.50~3.50 | 6 |
| 22.00 | 18.00 | 4.00 | 2.00 | 4.50 | |||
| 30.00 | 22.00 | 5.00~8.00 | 3.00 | 2.00 | 7.00 | ||
| 35.00 | 25.00 | 9.00~11.00 | |||||
| 40.00 | 28.00 | 12.00~14.00 | |||||
| 45.00 | 30.00 | 15.00~17.00 | |||||
| 50.00 | 32.00 | 18.00~21.00 | 8.00 | ||||
| 55.00 | 22.00~25.00 | ||||||
| 60.00 | 34.00 | 26.00~28.00 | |||||
| 65.00 | 36.00 | 29.00~31.00 | |||||
| 75.00 | 42.00 | 33.00~35.00 | 5.00 | 3.00 | 10.00 | ||
| 85.00 | 45.00 | 37.00~39.0 | |||||
| 95.00 | 48.00 | 41.00~45.00 | |||||
| 100.00 | 52.00 | 47.00~51.00 | 7.00 | 4.00 | 12.00 | ||
| 110.00 | 56.00~60.00 | ||||||
