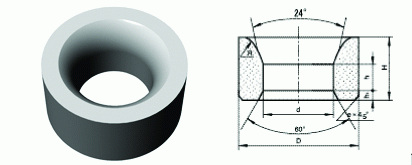

Drawing Dies - Type 23
| Type | Dimensions | |||||
| D | H | d | h | h1 | R | |
| 23- | 50.00 | 32.00 | 20.00~24.00 | 12.00 | 2.00 | 30.00 |
| 60.00 | 35.00 | 26.00~30.00 | 35.00 | |||
| 70.00 | 42.00 | 32.00~40.00 | 15.00 | 2.50 | ||
| 75.00 | ||||||
| 85.00 | 45.00 | 42.00~46.00 | 3.00 | 40.00 | ||
| 100.00 | 50.00 | 48.00~62.00 | 18.00 | |||
| 110.00 | ||||||
| 125.00 | 55.00 | 64.00~70.00 | 20.00 | |||
