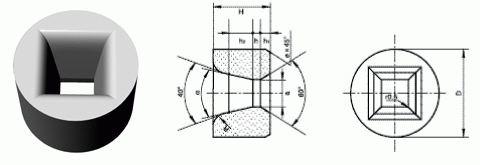

Drawing Dies - Type40
| Type | Dimensions | ||||||
| D | H | a | h | h1 | h2 | αo | |
| 40- | 16.00 | 12.00 | 1.80~2.40 | 1.00 | 1.50 | 5.00 | 14~20 |
| 22.00 | 18.00 | 2.80~4.00 | 1.50 | 2.00 | 7.00 | ||
| 30.00 | 21.00 | 4.60~6.70 | 2.00 | 11.00 | |||
| 35.00~45.00 | 25.00 | 7.70~14.00 | 3.00~3.50 | 3.00 | 13.00 | ||
| 50.00 | 28.00 | 15.00~18.00 | 4.00 | 14.00 | |||
| 60.00 | 30.00 | 19.00~23.00 | 5.00 | 4.00 | |||
| 65.00 | 32.00 | 24.70~27.50 | 6.00 | 5.00 | |||
| 70.00~80.00 | 35.00 | 28.00~37.50 | 8.00 | 6.00 | 16.00 | ||
| 90.00~100.00 | 40.00 | 38.00~47.00 | |||||
| 120.00 | 45.00 | 49.00~53.00 | 20.00 | ||||
