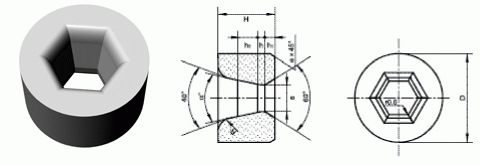

Drawing Dies - Type 60
| Type | Dimensions | ||||
| D | H | s | R | h | |
| 60- | 30.00~35.00 | 21.00 | 2.50~10.60 | 3.00 | 1.50~3.00 |
| 40.00~45.00 | 25.00 | 11.50~18.50 | 4.00 | 3.50~4.00 | |
| 55.00 | 28.00 | 19.50~23.50 | 5.00 | 5.00 | |
| 65.00 | 30.00 | 24.00~28.50 | 6.00 | ||
| 75.00~90.00 | 35.00 | 29.50~49.00 | 6.00 | 7.00 | |
| 100.00 | 40.00 | 52.00~57.00 | 8.00 | ||
| 120.00 | 42.00 | 59.50~74.00 | |||
